Tail calls in hello-ebpf

Blog series: Part 4 — Tail calls and your first eBPF application
Javadoc: BPFProgArray
Source: BPFProgArray.java
See also: XDP Hook · TC Hook · BPF Maps

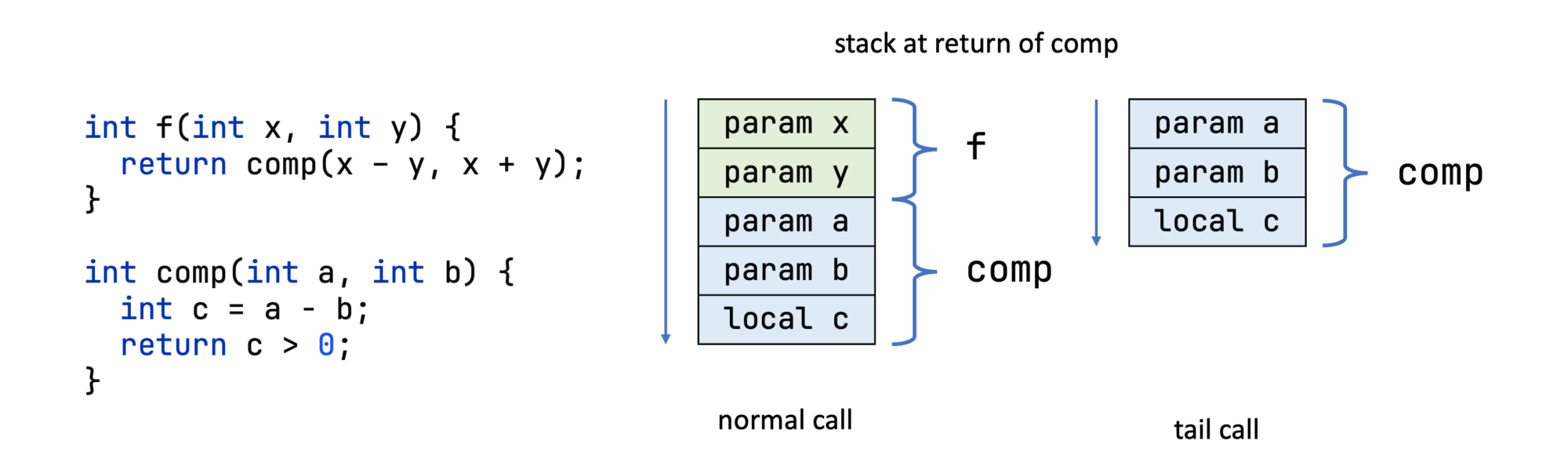

Stack frames with vs without a tail call — no stack growth with tail calls

BPF programs cannot recurse or exceed the verifier's instruction budget, so long dispatch chains are split into stages connected by tail calls: bpf_tail_call(ctx, &prog_array, slot) transfers execution to the program at prog_array[slot] and never returns. hello-ebpf gives you two surfaces for this pattern:

  1. Raw BPFProgArray — the primitive. progs.register(slot, handle) plus progs.tailCall(ctx, slot). Shown in TailCallDemo below.
  2. @BPFTailCallTable — auto-registers slots from an enum, and validates slot names at compile time. Shown in HelloTailCall below.

@BPFTailCallTable — HelloTailCall

HelloTailCall.java is a 3-stage XDP pipeline. Every incoming packet passes through three sub-programs in sequence: parseEthImpl → parseIpImpl → countImpl. Each stage increments a counter and tail-calls the next one; the last stage returns XDP_PASS.

@BPF(license = "GPL")
public abstract class HelloTailCall extends BPFProgram implements XDPHook {

    public enum Slot { PARSE_ETH, PARSE_IP, COUNT }

    // Integer literals for use inside @BPFFunction bodies.
    // Slot.ordinal() is the source of truth; these must stay in sync.
    static final int SLOT_PARSE_ETH = 0;
    static final int SLOT_PARSE_IP  = 1;
    static final int SLOT_COUNT     = 2;

    @BPFTailCallTable(slots = Slot.class)
    @BPFMapDefinition(maxEntries = 3)
    BPFProgArray dispatch;

    final GlobalVariable<@Unsigned Integer> parseEthCalls = new GlobalVariable<>(0);
    final GlobalVariable<@Unsigned Integer> parseIpCalls  = new GlobalVariable<>(0);
    final GlobalVariable<@Unsigned Integer> countCalls    = new GlobalVariable<>(0);

    @BPFFunction(section = "xdp")
    @TailCallSlot("PARSE_ETH")
    public xdp_action parseEthImpl(Ptr<xdp_md> ctx) {
        parseEthCalls.set(parseEthCalls.get() + 1);
        dispatch.tailCall(ctx, SLOT_PARSE_IP);
        return xdp_action.XDP_PASS; // unreachable — tailCall never returns
    }

    @BPFFunction(section = "xdp")
    @TailCallSlot("PARSE_IP")
    public xdp_action parseIpImpl(Ptr<xdp_md> ctx) {
        parseIpCalls.set(parseIpCalls.get() + 1);
        dispatch.tailCall(ctx, SLOT_COUNT);
        return xdp_action.XDP_PASS;
    }

    @BPFFunction(section = "xdp")
    @TailCallSlot("COUNT")
    public xdp_action countImpl(Ptr<xdp_md> ctx) {
        countCalls.set(countCalls.get() + 1);
        return xdp_action.XDP_PASS;
    }

    @Override
    public xdp_action xdpHandlePacket(XDPContext ctx) {
        // Entry point — dispatch to the first stage.
        dispatch.tailCall(ctx, SLOT_PARSE_ETH);
        return xdp_action.XDP_PASS;
    }

    public static void main(String[] args) throws InterruptedException {
        try (HelloTailCall program = BPFProgram.load(HelloTailCall.class)) {
            // No manual register(...) calls — the annotation processor
            // emits dispatch.register(0, ...), dispatch.register(1, ...) etc.
            // in the generated constructor.
            program.xdpAttach();
            for (int i = 0; i < 30; i++) {
                System.out.printf("parseEth=%d parseIp=%d count=%d%n",
                        program.parseEthCalls.get(),
                        program.parseIpCalls.get(),
                        program.countCalls.get());
                Thread.sleep(1000);
            }
        }
    }
}

sudo ./run.sh HelloTailCall
# In another shell:
ping -c 5 127.0.0.1

What @BPFTailCallTable does

The annotation processor sees @BPFTailCallTable(slots = Slot.class) and emits these lines into the generated HelloTailCallImpl constructor:

dispatch.register(0, getProgramByName("parseEthImpl"));  // PARSE_ETH
dispatch.register(1, getProgramByName("parseIpImpl"));   // PARSE_IP
dispatch.register(2, getProgramByName("countImpl"));     // COUNT

@TailCallSlot("PARSE_ETH") on parseEthImpl is the link: it declares which enum constant maps to that method. The processor validates the name at compile time — a typo produces an error, not a silent wrong slot.

Raw BPFProgArray — TailCallDemo

TailCallDemo.java uses BPFProgArray directly without @BPFTailCallTable. The entry point counts packets and tail-calls to one of two sub-programs: slot 0 drops the packet, slot 1 passes it. Every third packet is dropped; all others pass.

@BPF(license = "GPL")
public abstract class TailCallDemo extends BPFProgram implements XDPHook {

    static final int SLOT_DROP = 0;
    static final int SLOT_PASS = 1;

    @BPFMapDefinition(maxEntries = 2)
    BPFProgArray progs;

    final GlobalVariable<@Unsigned Integer> packetCount = new GlobalVariable<>(0);

    /** Sub-program registered in slot 0 — drops the packet. */
    @BPFFunction(section = "xdp")
    public xdp_action xdpDropPacket(Ptr<xdp_md> ctx) {
        return xdp_action.XDP_DROP;
    }

    /** Sub-program registered in slot 1 — passes the packet. */
    @BPFFunction(section = "xdp")
    public xdp_action xdpPassPacket(Ptr<xdp_md> ctx) {
        return xdp_action.XDP_PASS;
    }

    @Override
    public xdp_action xdpHandlePacket(XDPContext ctx) {
        @Unsigned int count = packetCount.get() + 1;
        packetCount.set(count);
        int slot = (count % 3 == 0) ? SLOT_DROP : SLOT_PASS;
        progs.tailCall(ctx, slot);
        return xdp_action.XDP_PASS; // reached only if tailCall finds no handler
    }

    public static void main(String[] args) throws InterruptedException {
        try (TailCallDemo program = BPFProgram.load(TailCallDemo.class)) {
            // Manual registration — required when not using @BPFTailCallTable.
            program.progs.register(SLOT_DROP, program.getProgramByName("xdpDropPacket"));
            program.progs.register(SLOT_PASS, program.getProgramByName("xdpPassPacket"));
            program.xdpAttach();
            while (true) {
                System.out.println("Packets seen: " + program.packetCount.get());
                Thread.sleep(1000);
            }
        }
    }
}

sudo ./run.sh TailCallDemo

When to use raw BPFProgArray

Use @BPFTailCallTable by default — it gives you type-safe enum slots and compile-time name validation. Reach for raw BPFProgArray only when:

  • You want to swap individual slots at runtime without reloading the whole program (see replaceSlot below).
  • You are building a plugin system where sub-programs are loaded independently.

Hot-swap via replaceSlot

BPFProgArray.replaceSlot(int slot, ProgramHandle newHandle) atomically updates a prog-array entry using bpf_map_update_elem. Live tail-calls see the new target immediately — no kernel restart needed:

// In TailCallDemo: swap slot 1 from xdpPassPacket to xdpDropPacket
// (now drop everything instead of passing)
program.progs.replaceSlot(SLOT_PASS, program.getProgramByName("xdpDropPacket"));

This works with any program type and requires no special load-time wiring.

Rules and constraints

@BPFTailCallTable

  • maxEntries on the sibling @BPFMapDefinition must equal the enum constant count.
  • @TailCallSlot("X") — X must be the exact name of a constant of the table's slots() enum.
  • If a class declares more than one @BPFTailCallTable, disambiguate with @TailCallSlot(value="A", table="<fieldName>").
  • Slot index = Enum.ordinal(). Reorder enum constants only if you update every downstream SLOT_* constant accordingly.
  • Integer literals are needed for dispatch.tailCall(ctx, N) inside @BPFFunction bodies because the BPF compiler plugin cannot lower Slot.PARSE_IP.ordinal() to a C integer at translation time.

Compile-time errors

Error message Cause
@BPFTailCallTable only applies to BPFProgArray fields Applied to a non-BPFProgArray field
@BPFTailCallTable requires @BPFMapDefinition on the same field Missing @BPFMapDefinition sibling
slots enum has N constant(s) but @BPFMapDefinition(maxEntries=M) disagrees maxEntries doesn't match enum size
@TailCallSlot("Z") — no such constant in enum <FQN>. Known: [A, B, C] Typo in slot name

Kernel limits

  • Max chain depth: 33 tail calls per original invocation. After that, bpf_tail_call silently does nothing (returns -ELOOP internally).
  • Shared stack: tail-called programs reuse the caller's stack frame. All stages share the same 512-byte BPF stack.
  • Program type: every program in a BPFProgArray must match the type of the calling program (e.g. all XDP or all TC). The kernel rejects mismatches at load time.
