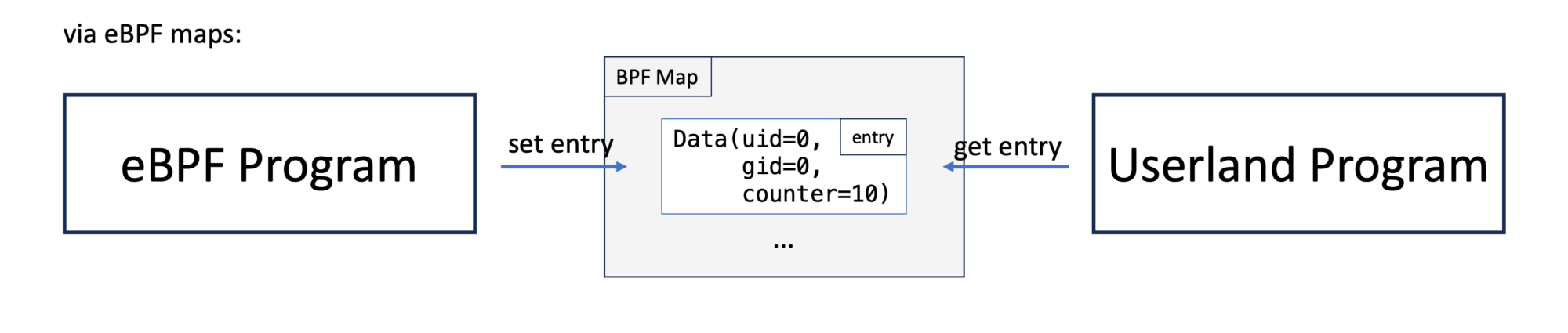

Maps are the primary mechanism for sharing data between BPF programs and user-space Java code. hello-ebpf provides typed Java wrappers for all major map types. Maps are declared as fields on your @BPF class and annotated with @BPFMapDefinition.

Declaration pattern

@BPF(license = "GPL")
public abstract class MyProg extends BPFProgram {

    @BPFMapDefinition(maxEntries = 1024)
    final BPFHashMap<Integer, Long> counts = BPFHashMap.newInstance();
}

The compiler plugin generates the corresponding SEC(".maps") definition in C.

---

BPFHashMap

When to use: General-purpose key/value store. Lookups are O(1) average.

Map type: BPF_MAP_TYPE_HASH

Declaration:

@BPFMapDefinition(maxEntries = 10_000)
final BPFHashMap<@Unsigned Integer, Long> pidToCount = BPFHashMap.newInstance();

BPF-side API (inside @BPFFunction):

Ptr<Long> valPtr = pidToCount.bpf_get(pid);   // returns Ptr<V> — may be null!
if (valPtr != null) {
    valPtr.set(valPtr.val() + 1);
} else {
    long zero = 0;
    pidToCount.bpf_put(pid, zero);
}
pidToCount.bpf_delete(pid);

bpf_get returns Ptr<V>, not V

Always null-check the result of bpf_get. If the key is absent the pointer is null and dereferencing it will crash the BPF verifier.

Java-side API:

prog.pidToCount.get(1234);          // Optional<Long>
prog.pidToCount.put(1234, 99L);
prog.pidToCount.delete(1234);
prog.pidToCount.forEach((k, v) -> System.out.println(k + " -> " + v));

---

BPFLRUHashMap

When to use: Like BPFHashMap but automatically evicts least-recently-used entries when full. Ideal for connection tracking or caches where stale entries are acceptable.

Map type: BPF_MAP_TYPE_LRU_HASH

Declaration:

@BPFMapDefinition(maxEntries = 65536)
final BPFLRUHashMap<Long, ConnInfo> connTable = BPFLRUHashMap.newInstance();

API is identical to BPFHashMap.

---

BPFArray

When to use: Fixed-size indexed array. All entries exist from creation (no null for missing entries). Great for per-index counters or lookup tables.

Map type: BPF_MAP_TYPE_ARRAY

Declaration:

@BPFMapDefinition(maxEntries = 256)
final BPFArray<Long> histogram = BPFArray.newInstance();

BPF-side API:

// Index must be a constant or a verified variable in [0, maxEntries)
Ptr<Long> slot = histogram.bpf_get(index);   // never null for arrays
if (slot != null) {
    slot.set(slot.val() + 1);
}

Java-side API:

prog.histogram.get(42);             // Optional<Long>
prog.histogram.put(42, 0L);

---

BPFRingBuffer

When to use: Low-overhead, variable-size event streaming from BPF to user-space. Prefer over perf event arrays for new code.

Map type: BPF_MAP_TYPE_RINGBUF

Declaration:

@BPFMapDefinition(maxEntries = 1 << 24)   // size in bytes, must be power of 2
final BPFRingBuffer<Event> events = BPFRingBuffer.newInstance(Event.class);

BPF-side API:

Ptr<Event> e = events.reserve();
if (e != null) {
    e.val().pid  = BPFJ.currentPid();
    e.val().tgid = BPFJ.currentTgid();
    events.submit(e);
}
// Or discard: events.discard(e);

Java-side API:

prog.events.setCallback((event) -> System.out.println("pid=" + event.pid));
prog.consumeAndThrow();   // poll ring buffer (or prog.consumeAndSleep(intervalMs))

---

BPFPerCpuArray

When to use: Per-CPU counters. Each CPU has its own independent copy — no locking, maximum throughput. Aggregate values Java-side by summing across CPUs.

Map type: BPF_MAP_TYPE_PERCPU_ARRAY

Declaration:

@BPFMapDefinition(maxEntries = 1)
final BPFPerCpuArray<Long> pktCount = BPFPerCpuArray.newInstance();

BPF-side API: identical to BPFArray.

Java-side API:

List<Long> perCpu = prog.pktCount.getAll(0);  // one value per CPU
long total = perCpu.stream().mapToLong(Long::longValue).sum();

---

BPFBloomFilter

When to use: Probabilistic membership test. Zero false negatives; small false-positive rate. Useful for quick rejection of known-bad IPs or processes.

Map type: BPF_MAP_TYPE_BLOOM_FILTER

Declaration:

@BPFMapDefinition(maxEntries = 10_000)
final BPFBloomFilter<Integer> blocklist = BPFBloomFilter.newInstance();

BPF-side API:

if (blocklist.peek(suspectIp)) {
    // Probably in set — apply heavier check or drop
    return XDP_DROP;
}
// Definitely not in set — pass
return XDP_PASS;

Java-side API:

prog.blocklist.put(0xC0A80001);   // 192.168.0.1

---

BPFPerCpuHashMap

When to use: Per-CPU hash map for lock-free counters keyed by an arbitrary value. Each CPU has its own value slot; aggregate Java-side by summing across CPUs.

Map type: BPF_MAP_TYPE_PERCPU_HASH

Declaration:

@BPFMapDefinition(maxEntries = 4096)
final BPFPerCpuHashMap<Integer, Long> pidBytes = BPFPerCpuHashMap.newInstance();

BPF-side API: identical to BPFHashMap (bpf_get, bpf_put, bpf_delete).

Java-side API:

List<Long> perCpuValues = prog.pidBytes.getAll(pid);   // one value per CPU
long total = perCpuValues.stream().mapToLong(Long::longValue).sum();

---

BPFHashOfMaps / BPFArrayOfMaps

When to use: A map whose values are themselves maps — e.g. per-CPU, per-connection, or per-user maps where each key needs its own independent state. See Map-of-Maps for full documentation.

Map types: BPF_MAP_TYPE_HASH_OF_MAPS / BPF_MAP_TYPE_ARRAY_OF_MAPS

Declaration:

@BPFMapDefinition(maxEntries = 1)   // inner-map template
BPFHashMap<Long, Long> innerTemplate;

@InnerMap("innerTemplate")
@BPFMapDefinition(maxEntries = 256)
BPFHashOfMaps<Integer, BPFHashMap<Long, Long>> outer;

BPF-side API:

Ptr<BPFHashMap<Long, Long>> inner = outer.lookup(cpuId);
if (inner != null) {
    inner.bpf_put(syscallNr, count + 1);
}

Java-side API:

prog.outer.register(cpuId, innerMapHandle);   // insert inner map fd
prog.outer.get(cpuId);                        // retrieve fresh fd handle

---

BPFQueue

When to use: FIFO queue. BPF enqueues events; Java dequeues them. Simpler than ring buffer when variable-length records are not needed.

Map type: BPF_MAP_TYPE_QUEUE

Declaration:

@BPFMapDefinition(maxEntries = 512)
final BPFQueue<Event> queue = BPFQueue.newInstance();

BPF-side API:

Event e = new Event();
e.pid = BPFJ.currentPid();
queue.push(e);

Java-side API:

Event e = prog.queue.pop();   // returns null if empty
if (e != null) { ... }

---

BPFStack

When to use: LIFO stack. Otherwise identical to BPFQueue.

Map type: BPF_MAP_TYPE_STACK

API mirrors BPFQueue; pop() returns the most-recently-pushed entry.

---

BPFProgArray

When to use: Tail calls — jump from one BPF program to another without returning. The array maps integer indices to loaded BPF programs.

Map type: BPF_MAP_TYPE_PROG_ARRAY

Declaration:

@BPFMapDefinition(maxEntries = 8)
final BPFProgArray jumptable = BPFProgArray.newInstance();

BPF-side API:

// In @BPFFunction
jumptable.bpf_tail_call(ctx, index);
// Execution continues here only if tail call fails (index out of range / map empty)

Java-side setup:

prog.jumptable.register(0, prog.getProgramByName("handle_ipv4"));
prog.jumptable.register(1, prog.getProgramByName("handle_ipv6"));

---

BPFTaskStorage

When to use: Per-task state in struct_ops (sched_ext) programs. The kernel owns the lifecycle — entries are automatically removed when the task exits, no explicit delete needed. Safer than a hash map keyed by PID because there are no stale entries and lookup is O(1).

Map type: BPF_MAP_TYPE_TASK_STORAGE
Kernel minimum: 5.11

Declaration:

@Type
record TaskCtx(long wakeupCount, long lastRunNs) {}

@BPFMapDefinition(maxEntries = 0)  // maxEntries is ignored for task storage
BPFTaskStorage<TaskCtx> taskCtx;

BPF-side API:

// In @BPFFunction
Ptr<TaskCtx> ctx = taskCtx.bpf_get_or_create(p);  // p is Ptr<task_struct>
if (ctx != null) {
    ctx.val().wakeupCount += 1;
}

bpf_get_or_create returns a pointer to the task's storage, creating it (zeroed) if it doesn't exist yet. No null check needed for the create path — it returns null only on OOM.

The Java side cannot iterate task storage (kernel constraint). It can only be used from BPF programs attached to struct_ops entries.

Full example: sched/TaskStorageScheduler.java — FIFO scheduler with per-task wakeup counts.

See sched_ext guide §4 for a complete walkthrough.

---

Common patterns

Initialise a map entry atomically

// BPF side — safe increment even under concurrency
Ptr<Long> val = counts.bpf_get(key);
if (val == null) {
    long zero = 1;
    counts.bpf_put(key, zero);
} else {
    // __sync_fetch_and_add via BPFJ if needed
    val.set(val.val() + 1);
}

Iterate over a hash map from Java

prog.counts.forEach((k, v) -> {
    System.out.printf("key=%d count=%d%n", k, v);
    prog.counts.delete(k);   // reset as we read
});

---

Examples

• HashMapSample.java — BPFHashMap for syscall counting
• RingSample.java — BPFRingBuffer event streaming
• HelloArrayOfMaps.java — BPFArrayOfMaps / BPFHashOfMaps
• PerCpuInnerMapSample.java — per-CPU inner maps

---
