Annotations Catalog

Blog series: Part 7 — Auto-layouting structs · Part 12 — Write eBPF in pure Java

All hello-ebpf annotations fall into five buckets:

• Program shape — annotations that declare BPF programs, probe types, maps, and timers.
• Type system — annotations that control how Java types map to C structs, unions, enums, and arrays.
• Pointer qualifiers — annotations that describe memory provenance (arena, kernel, user, nullable, kptr).
• Build and load — annotations that affect compilation, feature-gating, and map sharing at load time.
• Plugin-internal — annotations consumed only by the annotation processor or compiler plugin; not intended for user code.

---

Program shape

@BPF

Triggers annotation-processor compilation of a BPFProgram subclass. Place on an abstract class that extends BPFProgram. The processor generates a concrete *Impl class, compiles the embedded C program, and wires up Java-side map and program accessors.

@BPF(license = "GPL")
public abstract class HelloWorld extends BPFProgram {
    static final String EBPF_PROGRAM = """ ... """;
}

Attributes:

• license — BPF license string (e.g. "GPL"). When empty the processor emits a SEC("license") variable instead.
• includeTypes — additional @Type-annotated classes to include in the generated C source.
• includes — default headers (vmlinux.h, bpf_helpers.h, etc.); override only when you need a completely custom set.

---

@BPFFunction

Marks a method as a BPF C function. Controls the C section, header template, last statement, and inlining. Apply to methods inside a @BPF class or a @BPFInterface/@StructOps interface.

@BPFFunction(
    headerTemplate = "int BPF_PROG($name, int dfd, struct filename *name)",
    lastStatement  = "return 0;",
    section        = "fentry/do_unlinkat"
)
public default void enterUnlinkat(int dfd, Ptr<filename> name) {
    throw new MethodIsBPFRelatedFunction();
}

Key attributes:

• section — emits SEC("..."). When absent the method is treated as a helper (inlined by default).
• headerTemplate — overrides the generated C function header; supports $name, $return, $params, $paramN, $paramTypeN.
• lastStatement — appended as the final C statement of the function body.
• callTemplate — controls how call sites in C are rendered (default: $name).
• inline — defaults to true for helpers, false for entry-point programs (with a section).
• autoAttach — include this program when BPFProgram.autoAttachPrograms() is called.
• name — override the C function name (default: method name).

---

@BPFInline / @AlwaysInline

Force __always_inline on the generated C function. Both annotations are equivalent; @BPFInline is in the bpf package. Apply to any method that is called from other BPF functions and must not generate a separate function frame.

@BPFInline
@BPFFunction
public int helperFn(int x) { ... }

@AlwaysInline is in me.bechberger.ebpf.annotations; prefer @BPFInline when importing from the bpf annotation package.

---

@Kprobe

Attaches the method as a kprobe on the named kernel function entry. Equivalent to @BPFFunction(section = "kprobe/<symbol>", autoAttach = true).

@Kprobe("do_sys_openat2")
int onOpenAt(Ptr<PtDefinitions.pt_regs> ctx) {
    return 0;
}

---

@Kretprobe

Attaches the method as a kretprobe on the named kernel function return. Equivalent to @BPFFunction(section = "kretprobe/<symbol>", autoAttach = true).

@Kretprobe("do_sys_openat2")
int onOpenAtReturn(Ptr<PtDefinitions.pt_regs> ctx) {
    return 0;
}

---

@Ksyscall

Attaches the method as an architecture-portable ksyscall probe. Equivalent to @BPFFunction(section = "ksyscall/<syscall>", autoAttach = true). The syscall name must omit the architecture prefix (e.g. "openat", not "__x64_sys_openat").

@Ksyscall("openat")
int countOpenAt(Ptr<PtDefinitions.pt_regs> ctx) {
    return 0;
}

---

@Fentry

BTF-based function entry probe, auto-attached. Requires BTF kernel support (kernel ≥ 5.5). Equivalent to @BPFFunction(section = "fentry/<symbol>", autoAttach = true).

@Fentry("tcp_sendmsg")
void onTcpSend(Ptr<sock> sk, Ptr<msghdr> msg, int size) {}

---

@Fexit

BTF-based function return probe, auto-attached. Requires BTF kernel support. Equivalent to @BPFFunction(section = "fexit/<symbol>", autoAttach = true).

@Fexit("tcp_sendmsg")
void afterTcpSend(Ptr<sock> sk, Ptr<msghdr> msg, int size, int ret) {}

---

@Tracepoint

Typed tracepoint, auto-attached by category and name. The method parameter list must match the tracepoint's format fields.

@Tracepoint(category = "syscalls", name = "sys_enter_openat")
int onOpenAt(Ptr<OpenAtCtx> ctx) { return 0; }

---

@RawTracepoint

Raw (untyped) tracepoint, auto-attached by name. The header macro BPF_PROG is applied automatically.

@RawTracepoint("sys_enter")
void onSyscallEnter(Ptr<PtDefinitions.pt_regs> regs, @Unsigned long nr) {}

---

@LSM

Linux Security Module BPF hook, auto-attached. Return 0 to allow; return a negative errno (e.g. -EACCES) to deny. Requires CONFIG_BPF_LSM=y and lsm=...,bpf on the kernel command line.

@LSM("file_open")
int onFileOpen(Ptr<runtime.file> file, int mask) {
    return 0;  // allow all
}

Common hooks: file_open, bpf, socket_create, task_fix_setuid, inode_rename, inode_unlink.

See also: LSM guide

---

@Uprobe

User-space probe, auto-attached. Specify path to the binary or shared library and either symbol or offset.

@Uprobe(path = "/usr/lib/libc.so.6", symbol = "malloc")
int traceMalloc(Ptr<PtDefinitions.pt_regs> ctx) { return 0; }

See also: uprobes guide

---

@Uretprobe

User-space return probe, auto-attached. Same attributes as @Uprobe.

@Uretprobe(path = "/usr/lib/libc.so.6", symbol = "malloc")
int traceMallocRet(Ptr<PtDefinitions.pt_regs> ctx) { return 0; }

---

@KProbeMulti

Emits SEC("kprobe.multi/<glob>"). Attach is manual: call BPFProgram.attachKProbeMulti(prog, symbols, cookies, retprobe) at runtime with the resolved symbol list. Set retprobe = true to emit kretprobe.multi. Requires kernel ≥ 5.18.

@KProbeMulti("vfs_*")
int multiProbe(Ptr<PtDefinitions.pt_regs> ctx) { return 0; }

---

@UProbeMulti

Emits SEC("uprobe.multi/<glob>"). Attach is manual: call BPFProgram.attachUprobeMulti(prog, binaryPath, funcs, cookies, retprobe) at runtime. Set retprobe = true to emit uretprobe.multi. Requires kernel ≥ 6.6.

@UProbeMulti
int traceMultiLibc(Ptr<PtDefinitions.pt_regs> ctx) { return 0; }

---

@BPFMapDefinition

Declares a BPF map field. Apply as a type-use annotation on a non-private, non-final instance field of a @BPFMapClass type. maxEntries is mandatory; for ring buffers it is the byte size (must be a multiple of the page size).

@BPFMapDefinition(maxEntries = 1024)
BPFHashMap<Integer, Long> pidToCount;

---

@BPFMapClass

Declares a Java class as a BPF map type. Apply to a class that wraps a specific map kind. cTemplate and javaTemplate use $field, $maxEntries, $c1/$c2 (C type names), $b1/$b2 (BPFType references), and $fd (Java FileDescriptor creation code).

Intended for library authors defining new map types, not for end users.

---

@BPFTailCallTable

Marks a BPFProgArray field as an enum-driven tail-call dispatch table. The enum's ordinals become the slot indices. Pair with @BPFMapDefinition whose maxEntries equals the enum constant count.

enum Slot { PARSE_ETH, PARSE_IP }

@BPFTailCallTable(slots = Slot.class)
@BPFMapDefinition(maxEntries = 2)
BPFProgArray dispatch;

See also: tail-calls guide

---

@TailCallSlot

Marks a @BPFFunction method as the implementation of a specific slot in a @BPFTailCallTable. value() must be the exact name of a constant of the table's enum. Use table() to disambiguate when the class has more than one table.

@TailCallSlot("PARSE_ETH")
@BPFFunction
int parseEth(Ptr<PtDefinitions.pt_regs> ctx) { return 0; }

---

@BPFTimer

Marks a @BPFFunction method as a BPF timer callback. The method signature must match the BPF timer callback convention (map pointer, key pointer, value pointer). Register with bpf_timer_set_callback and start with bpf_timer_start.

@BPFTimer
@BPFFunction
static int onTimer(Ptr<?> map, Ptr<Integer> key, Ptr<TimerEntry> val) { return 0; }

See also: timers guide

---

@StructOps

Marks an interface as the Java mirror of a kernel bpf_struct_ops table. When a @BPF class implements the interface, the compiler plugin emits one BPF program per overridden method plus a SEC(".struct_ops.link") struct instance.

@StructOps("tcp_congestion_ops")
public interface TcpCongestionControl {
    default int ssthresh(Ptr<sock> sk) { return 4; }
}

Key attributes:

• value — kernel BTF type name (e.g. "sched_ext_ops", "tcp_congestion_ops").
• instanceName — override the C-side struct instance variable name (default: implementing class name).
• emittedNamePrefix — prefix prepended to each emitted BPF function name.
• sectionPrefix — section prefix for each callback (default: "struct_ops/").

See also: struct-ops guide

---

@Property / @Properties

Sets the value of a named C-code property defined by @PropertyDefinition. Apply to a @BPF class. @Properties is the repeatable container.

@BPF(license = "GPL")
@Property(name = "sched_name", value = "my_scheduler")
public abstract class MyScheduler extends BPFProgram implements Scheduler {}

---

@PropertyDefinition / @PropertyDefinitions

Declares a named placeholder substituted into generated C code as ${name}. Apply to a @BPFInterface or @StructOps interface. @PropertyDefinitions is the repeatable container.

@PropertyDefinition(name = "sched_name", defaultValue = "scheduler")
public interface Scheduler { ... }

The regexp attribute validates the value supplied via @Property.

---

Type system

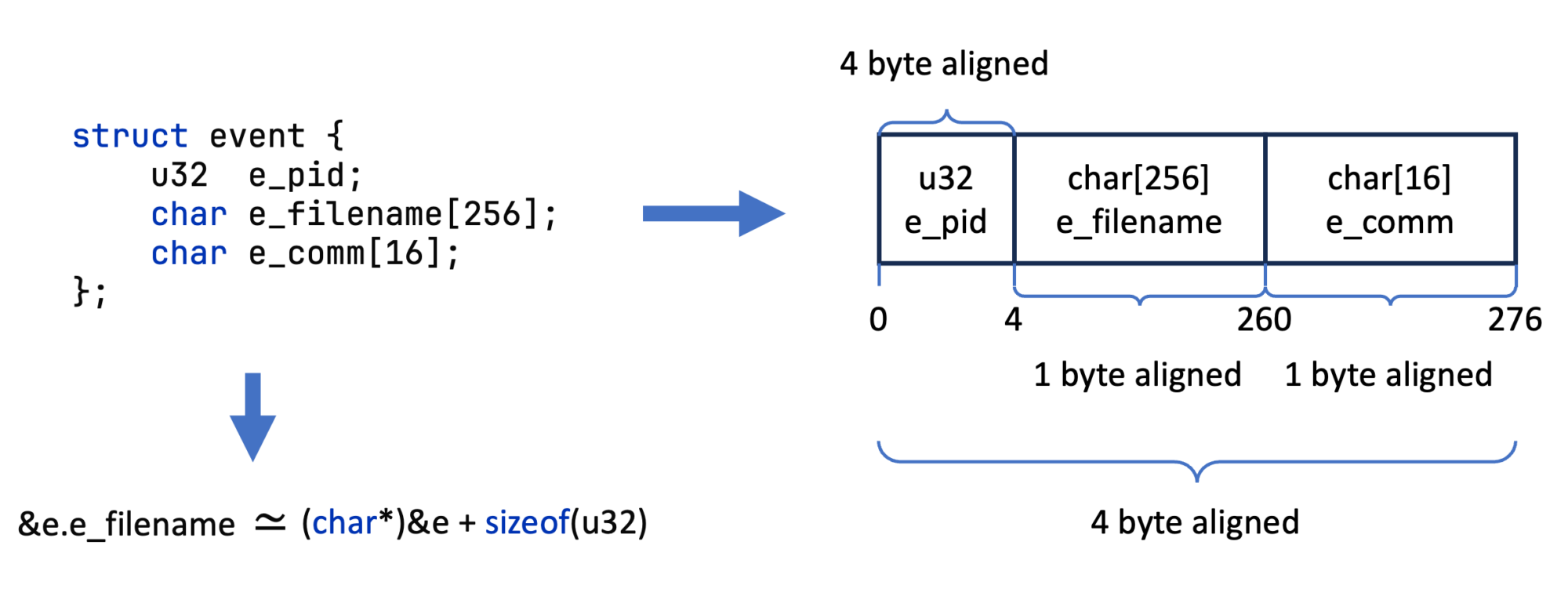

@Type

Generates a BPF C struct, union, or typedef for the annotated record or class. Apply to a record, a class extending Struct or Union, or an enum implementing Enum<T>.

@Type
record Event(@Unsigned int pid, @Size(256) String filename) {}

Attributes:

• name — override the generated C type name.
• typedefed — emit a typedef struct ... definition.
• cType — use an explicit C type expression (supports $T1, $T2 template params).
• noCCodeGeneration — suppress C emission (type is already defined elsewhere).

---

@Unsigned

Marks an integer field or local variable as unsigned in the generated C code. Apply as a type-use annotation on int, long, short, or byte fields.

@Type
record Counter(@Unsigned int value, @Unsigned long timestamp) {}

---

@Size / @Sizes

Specifies the array length for a fixed-size array field or a fixed-length String (C char[]). @Sizes is the implicit repeatable container used for multi-dimensional arrays.

@Type
record Event(@Size(256) String filename, @Size(16) byte[] comm) {}

---

@BoundedBy

Declares a static upper bound on the iteration count of the loop that uses the annotated variable as its index. The compiler plugin rewrites the loop into a verifier-friendly form with a constant bound plus a runtime break.

for (@BoundedBy(64) int cpu = 0; cpu < ncpus; cpu++) { ... }

N must be a compile-time constant.

---

@EnumMember

Specifies an explicit numeric value and/or C name for a BPF enum constant. Apply to enum fields inside a @Type-annotated enum.

@Type
enum Kind implements Enum<Kind> {
    A, @EnumMember(value = 23, name = "KIND_B") B
}

---

@InlineUnion

Groups consecutive struct fields into an anonymous inline union. All fields sharing the same integer value() are placed in the same anonymous union block in the generated C struct.

@Type
class Address extends Struct {
    @InlineUnion(1) @Unsigned int  ipv4;
    @InlineUnion(1) @Size(16) byte[] ipv6;
}

---

@Offset

Declares an explicit byte offset (from the start of the struct) for a struct field. Used when the field must be placed at a fixed position that differs from the natural layout.

@Type
class RawHeader extends Struct {
    @Offset(4) @Unsigned int flags;
}

---

@OriginalName / @OriginalNames

Records the original C name for a type used under a different Java alias. The compiler plugin uses this to emit the correct C type name in generated code. @OriginalNames is the repeatable container.

Apply as a type-use annotation where the Java name differs from the kernel C name.

---

@PassByRef

Suppresses the automatic TAKE_ADDRESS / DEREFERENCE insertion that PtrCoercionInference applies at parameter sites. Apply to a parameter when the caller must pass the literal value rather than an auto-inserted & or *.

void atomicAdd(@PassByRef Ptr<Integer> counter, int delta) { ... }

---

@CustomType

Marks a non-record class as a user-defined BPF type with a hand-specified BPFType instance and hand-written C code. Use when the automatic @Type processor cannot produce the required layout.

@CustomType(
    isStruct = true,
    specFieldName = "$outerClass.INT_PAIR",
    cCode = "struct $name { int x; int y; };",
    constructorTemplate = "((struct IntPair){$arg1, $arg2})"
)
record IntPair(int x, int y) {}

---

Pointer qualifiers

@InArena

Marks a pointer as living in a BPF arena address space (clang AS1, __arena). The compiler plugin emits the __arena type qualifier so clang selects the correct load/store path. Apply to fields, local variables, parameters, or as a type-use qualifier on Ptr<T>.

@InArena Ptr<MyStruct> node = arena.allocate(MyStruct.class);

See also: BPF Arenas

---

@Kptr

Marks a struct field as a BPF kernel pointer (__kptr). The verifier tracks ownership and reference-counting for __kptr fields; exchange the pointer in/out via bpf_kptr_xchg.

@Type
static class TaskCtx {
    @Kptr Ptr<bpf_cpumask> mask;
}

Lowered to:

struct TaskCtx { struct bpf_cpumask __kptr *mask; };

Apply only to struct fields. The pointed-to type must be a kernel object that supports kptr.

---

@TrustedPtr

Marks a kfunc parameter as requiring a trusted pointer. When present on a parameter, Ptr.directVal() may appear in the argument expression without triggering the plugin's structural check.

void bpf_kptr_xchg(@TrustedPtr Ptr<bpf_cpumask> field, Ptr<bpf_cpumask> newPtr) { ... }

---

@BPFNullable

Marks a method return value as potentially null (e.g. a map lookup that may miss). The compiler plugin enforces a null guard before any dereference of the result. Meaningful only on @BuiltinBPFFunction or @BPFFunctionAlternative methods.

@BuiltinBPFFunction("bpf_map_lookup_elem($arg1, $arg2)")
@BPFNullable
static native <K, V> Ptr<V> lookupElem(BPFHashMap<K, V> map, Ptr<K> key);

---

@BPFKernelMemory

Marks a pointer parameter or local variable as originating from kernel space. The compiler plugin emits bpf_probe_read_kernel when dereferencing pointers that the verifier does not track directly.

@BPFFunction
int probe(@BPFKernelMemory Ptr<SomeStruct> kPtr) { ... }

---

@BPFUserMemory

Marks a pointer parameter or local variable as originating from user space. The compiler plugin emits bpf_probe_read_user on dereference.

@BPFFunction
int probe(@BPFUserMemory Ptr<SomeStruct> uPtr) { ... }

---

@AllowDirectVal

Escape hatch that silences the plugin's structural check requiring Ptr.directVal() to be immediately followed by a field access. Apply to a local variable declaration or the enclosing @BPFFunction method.

@AllowDirectVal
Ptr<task_struct> t = getTask();
doSomething(t.directVal());

---

Build and load

@Includes

Adds extra #include directives to the generated BPF C program. Apply to a @BPF class or to an interface the class implements.

@BPF
@Includes({"linux/if_ether.h", "linux/ip.h"})
public abstract class PacketFilter extends BPFProgram { ... }

Each string becomes #include <...> in the generated C source.

---

@BuiltinBPFFunction

Marks a method as a pre-existing BPF helper or C function. The method body throws MethodIsBPFRelatedFunction; the annotation provides a call template that the compiler plugin substitutes at every call site.

@BuiltinBPFFunction("bpf_trace_printk($str$arg1, $strlen$arg1, $args2_)")
static void tracePrintk(String fmt, Object... args) {
    throw new MethodIsBPFRelatedFunction();
}

The carrier attribute names the C expression that becomes $this at subsequent call sites (used with @BPFAbstraction).

See also: helpers guide

---

@KFunc

Marks a @BuiltinBPFFunction stub as a kernel BPF kfunc. The compiler plugin emits a __ksym forward declaration in the BPF program prologue for every reachable @KFunc-annotated method.

@BuiltinBPFFunction("bpf_cpumask_create()")
@KFunc(signature = "struct bpf_cpumask *bpf_cpumask_create(void)")
static native Ptr<bpf_cpumask> bpfCpumaskCreate();

Normally generated by bpf-gen. Hand-apply only for kfuncs the generator did not pick up.

---

@KernelBTF

Marks a generated Java class as mirroring a kernel BTF type. The compiler plugin switches field accesses on annotated types from receiver->field to BPF_CORE_READ(receiver, field) for CO-RE relocation at load time.

Applied automatically by bpf-gen. Do not apply to user-written @Type records.

---

@Requires

Guards program loading on required kernel features. If a feature is absent the program is neither loaded nor compiled.

@BPF(license = "GPL")
@Requires(sched_ext = true)
public abstract class MyScheduler extends BPFProgram implements Scheduler { ... }

Currently supported: sched_ext (sched-ext kernel support).

---

@SharedFrom

Imports a pinned BPF map from another (@BPF) program class. Both programs share the same kernel map object. Apply alongside @BPFMapDefinition on the consumer field.

@SharedFrom(Producer.class)
@BPFMapDefinition(maxEntries = 1024)
BPFHashMap<Long, Stats> stats;

Pass the producer instance to BPFProgram.load(ConsumerClass.class, producer) at load time.

See also: shared-maps guide

---

@InnerMap

Marks a map-of-maps field with the name of a sibling @BPFMapDefinition field to use as the inner-map template. libbpf resolves the inner-map fd automatically during load.

@BPFMapDefinition(maxEntries = 1)
BPFHashMap<Long, Long> innerTemplate;

@InnerMap("innerTemplate")
@BPFMapDefinition(maxEntries = 256)
BPFHashOfMaps<Integer, BPFHashMap<Long, Long>> outer;

See also: map-of-maps guide

---

@Sleepable

On a @StructOps method override, emits SEC("struct_ops.s/<name>") (sleepable variant) instead of SEC("struct_ops/<name>"). Apply to the overriding method in the @BPF class.

@Override
@Sleepable
public int init() {
    return scx_bpf_create_dsq(0L, -1);
}

As of kernel 6.14, sched-ext's init is the canonical sleepable slot.

---

Plugin-internal (contributor reference)

The following annotations are consumed exclusively by the annotation processor or compiler plugin. They appear in generated code and in library infrastructure; user application code should not apply them directly.

Annotation	Package	Purpose
@BPFAbstraction	bpf	Marks a class as a compile-time BPF C abstraction with no runtime representation; provides carrier-expression inlining.
@BPFFunctionAlternative	bpf	Points to a BPF-callable alternative for a Java-only method.
@BPFImpl	bpf	Marks annotation-processor-generated *Impl class for a @BPF program.
@BPFInterface	bpf	Marks an interface as a BPF mixin processed by the annotation processor; supplies before/after C code blocks.
@BPFJavaInline	bpf	Inlines a Java method body at every BPF call site via GNU statement expressions; used inside @BPFAbstraction classes.
@InternalBody	bpf	Stores generated C body for interface-implemented methods; written by the processor, not by users.
@InternalMethodDefinition	bpf	Stores generated method definition for interface methods; written by the processor.
@JavaOnly	bpf	Prevents a static final field from being emitted as a C #define.
@NotUsableInJava	bpf	Marks BPF-only elements that must not be called from Java; triggers a compile error on Java-side calls.
@SuppressBPFWarning	me.bechberger.ebpf.annotations	Silences plugin diagnostics by category (e.g. "region.mixing", "null.maybe", "all") in the annotated scope.
