sched_ext — Kernelspace Scheduler¶

See also: Overview · Writing a Scheduler · Callbacks Reference · Cookbook

A kernelspace scheduler runs entirely inside the kernel: every scheduling decision happens in BPF, directly in kernel context, with no round-trip to user space. This gives you the lowest possible latency and the full sched_ext API surface.

The hello-ebpf kernelspace path builds on three types:

SchedulerBase — extends BPFProgram, implements sensible defaults for init, dispatch, and exit. Extend it unless you need BPFProgram directly.
DispatchQueue — a compile-time abstraction over DSQ IDs. Field declarations of new DispatchQueue(id) auto-inject scx_bpf_create_dsq into init(). All insert/move operations inline to the correct kfuncs.
Scheduler interface — declares the callback signatures. Extend SchedulerBase implements Scheduler to get IDE support and the correct method signatures.

Blog series — the kernel-side scheduler is introduced in Part 15: Writing a Linux scheduler in Java with eBPF and the lottery variant in Part 17: Writing a lottery scheduler in Java with sched_ext.
Talks: Writing a Linux Scheduler in Java with eBPF (eBPF Summit 2024) · Concurrency Testing Using Custom Linux Schedulers (p99conf 2025)

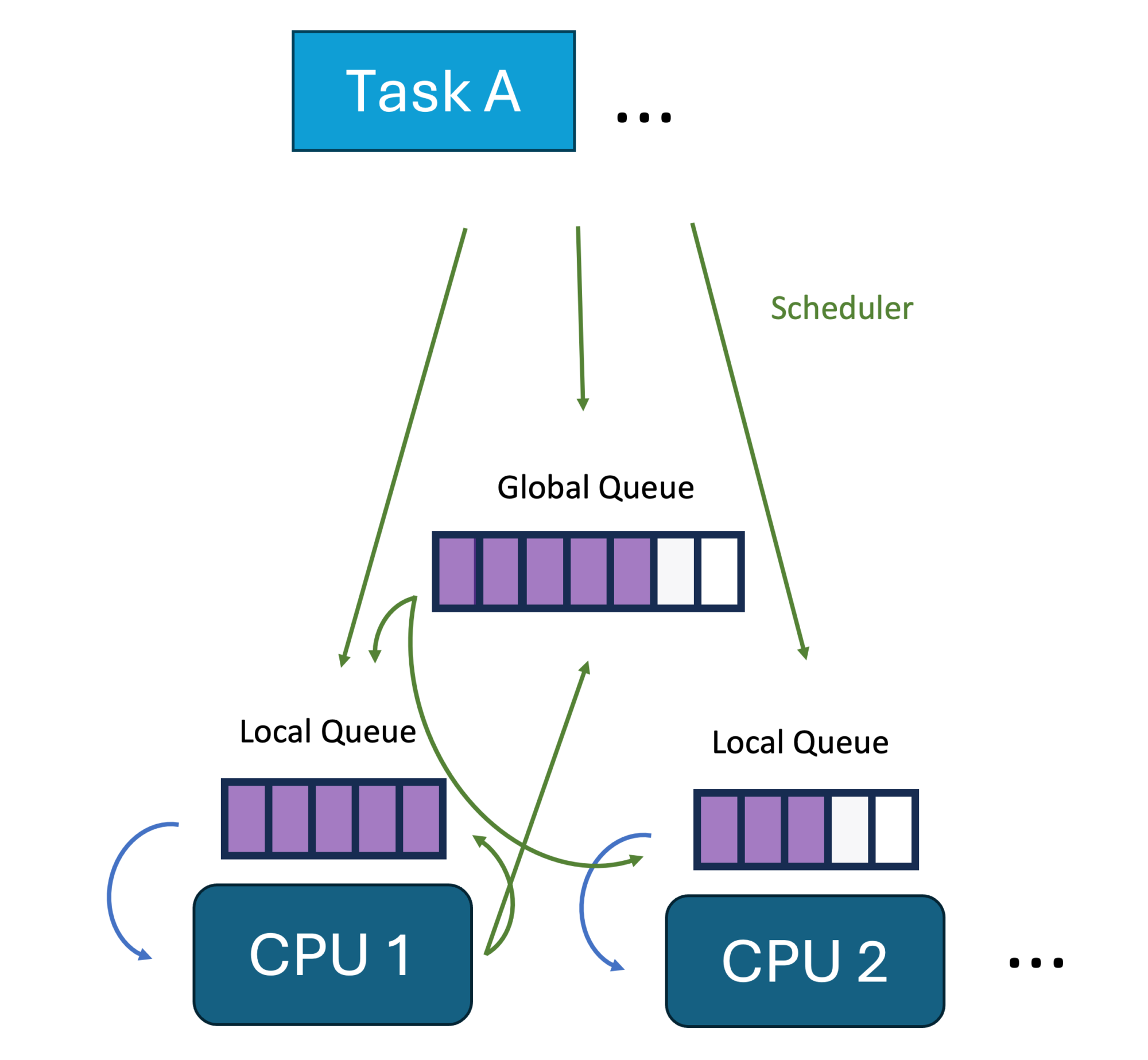

Tasks flow from the scheduler into a global DSQ, then into per-CPU local queues

Example: Lottery Scheduler¶

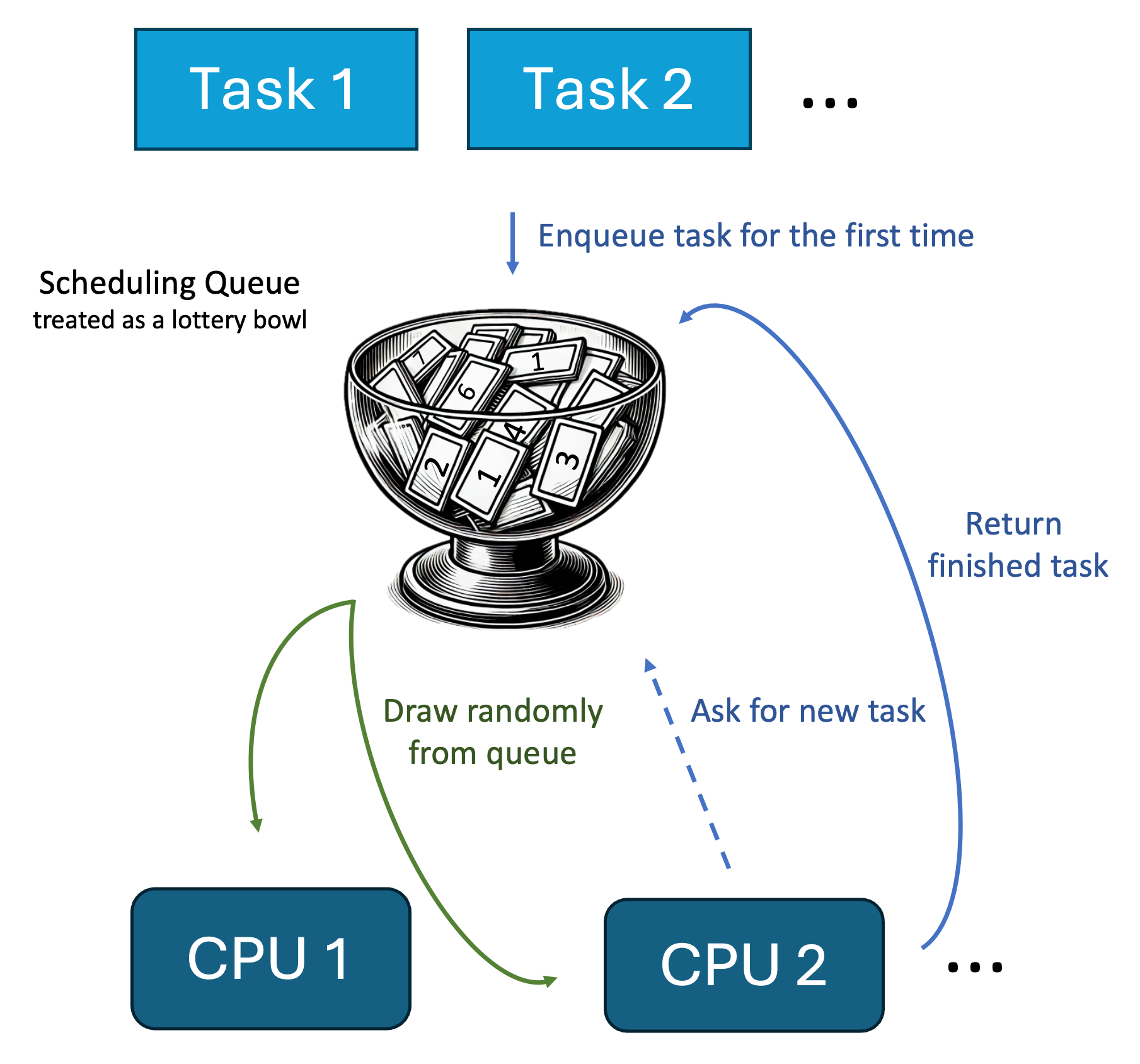

Visualization of lottery scheduling: tasks enqueue into a bowl, CPUs draw randomly

The lottery scheduler assigns each task a random time slice drawn from a uniform distribution. Tasks that get a longer slice run first (they advance less in a virtual-time DSQ), producing a fair lottery among runnable tasks without per-task bookkeeping.

This is the simplest example that goes beyond a trivial FIFO, because it uses bpf_get_prandom_u32 and the nrQueued() introspection call, and it extends BPFProgram directly (instead of SchedulerBase) to show the DSQ setup clearly.

import me.bechberger.ebpf.annotations.Unsigned;
import me.bechberger.ebpf.annotations.bpf.*;
import me.bechberger.ebpf.bpf.BPFProgram;
import me.bechberger.ebpf.bpf.Scheduler;
import me.bechberger.ebpf.bpf.sched.DispatchQueue;
import me.bechberger.ebpf.bpf.sched.EnqFlags;
import me.bechberger.ebpf.runtime.TaskDefinitions.task_struct;
import me.bechberger.ebpf.type.Ptr;
import static me.bechberger.ebpf.runtime.helpers.BPFHelpers.bpf_get_prandom_u32;

@BPF(license = "GPL")
@Property(name = "sched_name", value = "lottery_scheduler")
public abstract class LotteryScheduler extends BPFProgram implements Scheduler {

    private static final long SHARED_DSQ_ID = 0;

    // Declaring new DispatchQueue(...) auto-injects scx_bpf_create_dsq into init().
    final DispatchQueue shared = new DispatchQueue(SHARED_DSQ_ID);

    @Override
    @Sleepable
    public int init() {
        // scx_bpf_create_dsq(SHARED_DSQ_ID, -1) is injected here by the compiler plugin
        return 0;
    }

    @Override
    public void enqueue(Ptr<task_struct> p, long enq_flags) {
        int nr = shared.nrQueued();
        // Random slice in [0, 10ms], scaled down if many tasks are waiting
        int maxSlice = 10_000_000; // 10ms in ns
        int slice = nr > 0
            ? ((@Unsigned int) (bpf_get_prandom_u32() % maxSlice)) / nr
            : ((@Unsigned int) (bpf_get_prandom_u32() % maxSlice));
        if (slice == 0) slice = 1_000_000; // minimum 1ms
        shared.insert(p, slice, EnqFlags.passThrough(enq_flags));
    }

    @Override
    public void dispatch(int cpu, Ptr<task_struct> prev) {
        shared.moveToLocal();
    }

    public static void main(String[] args) throws Exception {
        try (var sched = BPFProgram.load(LotteryScheduler.class)) {
            sched.runSchedulerLoop();
        }
    }
}

Full runnable source: LotteryScheduler.java

Key differences from a SchedulerBase scheduler: - You must declare init() explicitly when extending BPFProgram directly — otherwise the scx_bpf_create_dsq injection has no method to land in. - @Sleepable is required on init() because scx_bpf_create_dsq is a sleepable kfunc and the kernel rejects it in a non-sleepable BPF program. - dispatch is not optional here — SchedulerBase provides a default, but BPFProgram does not.

Sample schedulers¶

Scheduler	What it demonstrates
`MinimalScheduler`	Simplest possible FIFO via `SchedulerBase`
`LotteryScheduler`	Random time-slice lottery (above)
`SimpleScheduler`	FIFO + vtime switchable at runtime
`VTimeScheduler`	Weighted fair-queuing
`NestScheduler`	Idle-CPU nesting with `CpuMask`
`PriorityScheduler`	Multiple priority-level DSQs
`DeadlineScheduler`	EDF scheduling via vtime = deadline
`PerCpuSchedulerSample`	Per-CPU DSQs via `PerCpuSchedulerBase`
`TaskStorageScheduler`	Per-task metadata via `BPFTaskStorage`
`SMTPairScheduler`	SMT-aware pairing for sibling cores

The `@Property` annotation¶

Name	Default	Meaning
`sched_name`	`"hello"`	Name shown in `/sys/kernel/sched_ext/root/ops`
`timeout_ms`	`30000`	Watchdog: auto-detaches scheduler if any task is not dispatched for this long
`extra_flags`	`0`	Additional `SCX_OPS_*` flags, e.g. `"SCX_OPS_ENQ_MIGRATION_DISABLED"`

@Property(name = "sched_name",  value = "my_sched")
@Property(name = "timeout_ms",  value = "5000")
@Property(name = "extra_flags", value = "SCX_OPS_ENQ_MIGRATION_DISABLED")
public abstract class MyScheduler extends SchedulerBase { ... }

DispatchQueue — typed DSQ wrapper¶

DispatchQueue is the primary API for working with DSQs (Dispatch Queues). It is a pure compile-time abstraction — no C struct is emitted; every method call is inlined by the BPF compiler plugin at the call site.

Creating a DSQ¶

// Attach to an already-existing DSQ (e.g. the one SchedulerBase.init() created):
final DispatchQueue shared = DispatchQueue.attach(SHARED_DSQ_ID);

// Create a new custom DSQ — scx_bpf_create_dsq() is automatically lifted to init():
static final long MY_DSQ = 1L;
final DispatchQueue myDsq = new DispatchQueue(MY_DSQ);

// Auto-assigned id (≥ 0x1_0000_0000, unique per program):
final DispatchQueue auto = new DispatchQueue();

When a new DispatchQueue(id) field is declared, the annotation processor automatically injects the scx_bpf_create_dsq(id, -1) call into the program's init() method — you don't need to write it yourself.

init() override required for BPFProgram subclasses

The prologue is injected into the init() method declared on the concrete @BPF class. If your scheduler extends SchedulerBase, its inherited init() qualifies automatically. If it extends BPFProgram directly, you must declare an explicit init() override — otherwise the scx_bpf_create_dsq call is never emitted and the scheduler detaches immediately after loading:
final DispatchQueue shared = new DispatchQueue(SHARED_DSQ_ID);

@Override
public int init() {
    // scx_bpf_create_dsq(SHARED_DSQ_ID, -1) injected here by the compiler plugin.
    return 0;
}

Inserting tasks (FIFO)¶

// FIFO: explicit slice
shared.insert(p, SCX_SLICE_DFL.value(), EnqFlags.passThrough(enq_flags));

// FIFO: slice scaled by current queue depth (good default)
shared.insertScaled(p, EnqFlags.passThrough(enq_flags));

// Fast-path from selectCPU: skip enqueue/dispatch if CPU is idle
DispatchQueue.insertToLocalIfIdle(p, is_idle, SCX_SLICE_DFL.value());

Inserting tasks (vtime / weighted-fair)¶

// Explicit vtime — e.g. EDF: use absolute deadline as vtime key
shared.insertVtime(p, SCX_SLICE_DFL.value(), deadline, EnqFlags.passThrough(enq_flags));

// Clamped vtime (WFQ): prevents sleeping tasks from accumulating credit
shared.insertVtimeClamped(p, vtimeNow.get(), EnqFlags.passThrough(enq_flags));

Never mix FIFO and vtime insertions on the same DSQ.

Dispatching¶

@Override
public void dispatch(int cpu, Ptr<task_struct> prev) {
    shared.moveToLocal();   // move one task to the current CPU's local queue
}

Inspection and timing¶

shared.nonEmpty()          // true when tasks are waiting
shared.nrQueued()          // count of waiting tasks
DispatchQueue.now()        // current monotonic time in ns (scx_bpf_now())
DispatchQueue.nrCpuIds()   // number of possible CPU ids

EnqFlags¶

EnqFlags wraps the raw enq_flags long from the enqueue() callback:

EnqFlags f = EnqFlags.passThrough(enq_flags); // wrap kernel-supplied flags
EnqFlags f = EnqFlags.empty();                // no flags
boolean isWakeup = f.isWakeup();              // SCX_ENQ_WAKEUP set?
boolean isLast   = f.isLast();                // last runnable task on this CPU?

Built-in DSQs¶

DispatchQueue.local()          // SCX_DSQ_LOCAL — current CPU's local queue
DispatchQueue.localOn(cpu)     // SCX_DSQ_LOCAL_ON | cpu
DispatchQueue.global()         // SCX_DSQ_GLOBAL

KickFlags¶

KickFlags wraps the flags argument of DispatchQueue.kickCpu():

DispatchQueue.kickCpu(nestCpu, KickFlags.idle());     // wake only if idle
DispatchQueue.kickCpu(cpu,     KickFlags.preempt());  // preempt whatever is running
DispatchQueue.kickCpu(cpu,     KickFlags.idle().or(KickFlags.waitForKick()));

Factory	C value	Meaning
`KickFlags.none()`	`0`	No flags
`KickFlags.idle()`	`SCX_KICK_IDLE`	Wake only if the CPU is idle
`KickFlags.preempt()`	`SCX_KICK_PREEMPT`	Preempt whatever is running
`KickFlags.waitForKick()`	`SCX_KICK_WAIT`	Wait for the kick to be processed

DSQ iteration¶

Iterate over all tasks in a DSQ — useful for work-stealing or re-prioritisation:

import me.bechberger.ebpf.bpf.BPFJ;
import static me.bechberger.ebpf.runtime.ScxDefinitions.bpf_iter_scx_dsq;

// Forward iteration (lowest vtime first):
shared.forEach(it, p -> {
    if (!CpuMask.ofTask(p).test(cpu)) return; // skip affinity-constrained tasks
    shared.moveFrom(it, p, EnqFlags.empty());
    BPFJ._break();
});

// Reverse iteration (highest vtime first):
shared.forEachReverse(it, p -> {
    shared.moveFrom(it, p, EnqFlags.empty());
    BPFJ._break();
});

BPFJ._break() and BPFJ._continue() work inside the lambda body. The iterator it is available for moveFrom, moveFromVtime, setMoveSlice, and setMoveVtime.

CpuMask — typed CPU affinity wrapper¶

CpuMask wraps a read-only const struct cpumask *. It is a pure compile-time abstraction (@BPFAbstraction) that must be used as a local variable inside a @BPFFunction body — never as a class field.

Always release borrowed masks with releaseIdle() or release() when done.

import me.bechberger.ebpf.bpf.sched.CpuMask;

@Override
public int selectCPU(Ptr<task_struct> p, int prev_cpu, long wake_flags) {
    // Pick any idle CPU from the idle mask
    CpuMask idle = CpuMask.idle();
    int cpu = idle.pickIdle(0);
    idle.releaseIdle();            // always release

    if (cpu >= 0) return cpu;
    return scx_bpf_select_cpu_dfl(p, prev_cpu, wake_flags, Ptr.of(false));
}

Factories¶

Factory	Release needed	C expression
`CpuMask.idle()`	`releaseIdle()`	`scx_bpf_get_idle_cpumask()`
`CpuMask.idleSmt()`	`releaseIdle()`	`scx_bpf_get_idle_smtmask()`
`CpuMask.idleOnNode(n)`	`releaseIdle()`	`scx_bpf_get_idle_cpumask_node(n)`
`CpuMask.online()`	`release()`	`scx_bpf_get_online_cpumask()`
`CpuMask.possible()`	`release()`	`scx_bpf_get_possible_cpumask()`
`CpuMask.ofTask(p)`	none	`p->cpus_ptr`

Operations¶

CpuMask idle = CpuMask.idle();

idle.test(cpu)          // true if cpu is set
idle.weight()           // number of set CPUs
idle.first()            // lowest-numbered set CPU
idle.isEmpty()          // true if no CPUs set
idle.intersects(other)  // true if at least one CPU in common
idle.pickIdle(0)        // pick and claim an idle CPU, or -EBUSY
idle.pickAny(0)         // pick any CPU, preferring idle ones

idle.releaseIdle();     // release — always call when done

Checking task affinity¶

CpuMask.ofTask(p) gives a direct view into the task's cpus_ptr — no release needed:

CpuMask allowed = CpuMask.ofTask(p);
if (allowed.test(cpu)) {
    // task can run on this cpu
}

Nest-CPU example (selectCPU + dispatch + tick)¶

@Override
public int selectCPU(Ptr<task_struct> p, int prev_cpu, long wake_flags) {
    CpuMask idle = CpuMask.idle();
    int nestCpu = findIdleNestCpu(idle);
    idle.releaseIdle();
    if (nestCpu >= 0) {
        DispatchQueue.localOn(nestCpu).insert(p, SCX_SLICE_DFL.value(), EnqFlags.empty());
        return nestCpu;
    }
    boolean is_idle = false;
    return scx_bpf_select_cpu_dfl(p, prev_cpu, wake_flags, Ptr.of(is_idle));
}

@Override
public void dispatch(int cpu, Ptr<task_struct> prev) {
    shared.moveToLocal();
    Ptr<Integer> nestFlag = inNest.bpf_get(cpu);
    if (nestFlag != null && nestFlag.val() == 0) {
        CpuMask idle = CpuMask.idle();
        int nestCpu = findIdleNestCpu(idle);
        idle.releaseIdle();
        if (nestCpu >= 0) {
            DispatchQueue.kickCpu(nestCpu, KickFlags.idle());
        }
    }
}

See NestScheduler in bpf-samples/ for the full runnable example.

Key scx kfuncs (low-level, use DispatchQueue instead)¶

The raw kfuncs are still accessible directly when you need them. Prefer DispatchQueue for new code.

Function	DispatchQueue equivalent
`scx_bpf_dsq_insert(p, id, slice, flags)`	`dsq.insert(p, slice, flags)`
`scx_bpf_dsq_insert_vtime(p, id, slice, vtime, flags)`	`dsq.insertVtime(p, slice, vtime, flags)`
`scx_bpf_dsq_move_to_local(id)`	`dsq.moveToLocal()`
`scx_bpf_select_cpu_dfl(p, prev, flags, &idle)`	still used directly
`scx_bpf_create_dsq(id, node)`	auto-lifted from `new DispatchQueue(id)`
`scx_bpf_destroy_dsq(id)`	`dsq.destroy()`
`scx_bpf_dsq_nr_queued(id)`	`dsq.nrQueued()` / `dsq.nonEmpty()`
`scx_bpf_kick_cpu(cpu, flags)`	`DispatchQueue.kickCpu(cpu, KickFlags.idle())`
`scx_bpf_now()`	`DispatchQueue.now()`
`scx_bpf_cpuperf_set(cpu, perf)`	`DispatchQueue.cpuperfSet(cpu, perf)`
`scx_bpf_task_cpu(p)`	still used directly
`scx_bpf_nr_cpu_ids()`	`DispatchQueue.nrCpuIds()`

Helper methods available on any Scheduler implementor (no import needed):

CPU selection - selectCpuDfl(p, prev_cpu, wake_flags) — default idle-CPU selection; returns CPU, no pre-dispatch (safe for vtime DSQs) - selectCpuDefault(p, prev_cpu, wake_flags) — like selectCpuDfl but pre-dispatches to SCX_DSQ_LOCAL if idle - selectCpuFifoIdleOrFallback(p, prev_cpu, wake_flags, dsq_id) — idle-CPU selection + fast-path local dispatch (FIFO DSQs only)

Enqueue helpers (deprecated — prefer DispatchQueue) - dsqInsert(p, enq_flags) — deprecated; use shared.insertScaled(p, EnqFlags.passThrough(enq_flags)) - vtimeEnqueue(p, enq_flags, vtime_now) — deprecated; use shared.insertVtimeClamped(p, vtimeNow, EnqFlags.passThrough(enq_flags))

Stopping / charging - vtimeCharge(p) — charge elapsed slice to p.scx.dsq_vtime - scaleByTaskWeight(p, value) — scale value inversely by task weight (useful for vtime accounting)

Filtering - hasSchedulingConstraints(p) — true if the task has cpumask/affinity constraints; fast-path it to avoid DSQ starvation - isDescendantOf(p, targetTgid) — true if p is in the process group rooted at targetTgid - isMigrationDisabled(p) — true if the task cannot migrate between CPUs

Iteration - bpf_for_each_dsq(dsq_id, iter, flags, lambda) — iterate over tasks in a DSQ (read-only) - tryDispatchToLocalCpu(iter, p, dsq_id, vtime, enq_flags) — dispatch a specific task from a DSQ iteration

Comparison - isSmaller(a, b) — unsigned less-than; required for correct vtime comparisons on 64-bit wraparound

Stats and observability¶

Use SchedulerStats to add per-CPU enqueue/dispatch counters with a few lines:

@BPF(license = "GPL")
@Property(name = "sched_name", value = "my_sched")
public abstract class MyScheduler extends SchedulerBase implements Scheduler {

    @BPFMapDefinition(maxEntries = 1)
    BPFPerCpuArray<Long> enqueuedCounts;

    @BPFMapDefinition(maxEntries = 1)
    BPFPerCpuArray<Long> dispatchedCounts;

    final DispatchQueue shared = DispatchQueue.attach(SHARED_DSQ_ID);

    @Override
    public void enqueue(Ptr<task_struct> p, long enq_flags) {
        shared.insertScaled(p, EnqFlags.passThrough(enq_flags));
        SchedulerStats.incrementEnqueued(enqueuedCounts);    // BPF-side
    }

    @Override
    public void dispatch(int cpu, Ptr<task_struct> prev) {
        shared.moveToLocal();
        SchedulerStats.incrementDispatched(dispatchedCounts); // BPF-side
    }

    // Java-side reads
    public long getTotalEnqueued()   { return SchedulerStats.totalEnqueued(enqueuedCounts); }
    public long getTotalDispatched() { return SchedulerStats.totalDispatched(dispatchedCounts); }
}

Use GlobalVariable<T> for any other BPF ↔ Java shared state:

final GlobalVariable<Boolean> fifoMode = new GlobalVariable<>(true);

// In BPF: read/write via fifoMode.get() / fifoMode.set(v)
// In Java: same API — read/write from user space while the scheduler is running

Per-task storage¶

Use BPFTaskStorage<T> for per-task metadata (kernel-managed, safe under concurrent task creation/destruction):

@Type
record TaskCtx(long vruntime) {}

@BPFMapDefinition(maxEntries = 1)
BPFTaskStorage<TaskCtx> taskCtx;

final DispatchQueue shared = DispatchQueue.attach(SHARED_DSQ_ID);

@Override
public void enable(Ptr<task_struct> p) {
    taskCtx.bpf_task_storage_get(p, new TaskCtx(vtimeNow.get()),
            BPF_LOCAL_STORAGE_GET_F_CREATE);
}

@Override
public void enqueue(Ptr<task_struct> p, long enq_flags) {
    EnqFlags f = EnqFlags.passThrough(enq_flags);
    Ptr<TaskCtx> ctx = taskCtx.bpf_task_storage_get(p, null, 0);
    if (ctx == null) {
        shared.insertScaled(p, f);
        return;
    }
    shared.insertVtime(p, SCX_SLICE_DFL.value(), ctx.val().vruntime(), f);
}

Or use a plain BPFHashMap<Integer, TaskCtx> keyed by p.val().pid if you prefer explicit map management.

Exit info¶

SchedulerBase captures the kernel's exit code when the scheduler is detached. After runSchedulerLoop() returns (or after closing the program), you can inspect it:

try (var sched = BPFProgram.load(MyScheduler.class)) {
    sched.runSchedulerLoop();
    long code = sched.getExitCode();
    // 0 = normal exit; non-zero = error (e.g. watchdog stall)
}

Override onSchedulerExit(long exitCode) to react inline:

@Override
public void onSchedulerExit(long exitCode) {
    if (exitCode != 0) {
        System.err.println("Scheduler exited with error: 0x" + Long.toHexString(exitCode));
    }
}

The default implementation logs a warning when the exit code is non-zero.

Note: SCX_EXIT_ERROR_STALL in the exit code means the watchdog fired (the scheduler did not dispatch for timeout_ms milliseconds).

PerCpuSchedulerBase — per-CPU DSQ layout¶

PerCpuSchedulerBase extends SchedulerBase with one dedicated DSQ per logical CPU plus the shared fallback DSQ:

CPU 0 DSQ (id = PER_CPU_DSQ_BASE + 0)  ─┐
CPU 1 DSQ (id = PER_CPU_DSQ_BASE + 1)  ─┤─ drained first by dispatch()
...                                      ─┘
Shared DSQ (id = SHARED_DSQ_ID = 0)   ──── fallback if per-CPU DSQ is empty

dispatch() drains the per-CPU DSQ for the calling CPU first; if empty, it falls back to the shared DSQ.

Use dsqInsertLocal(p, enq_flags) to insert into the DSQ of the CPU that p is currently pinned to. Use the inherited dsqInsert(p, enq_flags) for migratable tasks that can run anywhere.

@BPF(license = "GPL")
@Property(name = "sched_name", value = "my_per_cpu_sched")
public abstract class MyScheduler extends PerCpuSchedulerBase implements Scheduler {

    @Override
    public void enqueue(Ptr<task_struct> p, long enq_flags) {
        if (isMigrationDisabled(p)) {
            dsqInsertLocal(p, enq_flags);   // stays on its CPU
        } else {
            dsqInsert(p, enq_flags);        // can migrate freely
        }
    }
}

See PerCpuSchedulerSample in bpf-samples/ for a runnable example.

Inspecting generated BPF C code¶

The compiler plugin translates your Java scheduler into BPF C before loading. To see the generated code without root:

BPFProgram.printCode(MyScheduler.class);   // prints to stdout

Or at load time via an environment variable:

BPF_PRINT_CODE=1 sudo ./run.sh MyScheduler

This is useful for debugging compiler plugin output or verifying that helper methods are being inlined correctly.

Benchmarks and use cases¶

Scheduler latency benchmark¶

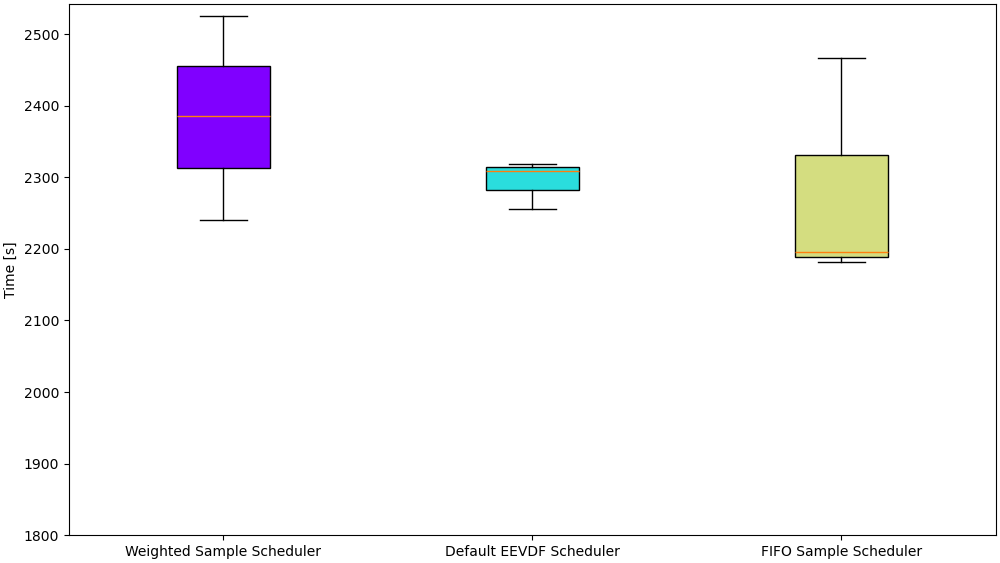

These box-plots from Part 15 compare a hello-ebpf weighted sample scheduler against EEVDF (the default) and FIFO, measured as compilation time — a real workload sensitive to scheduling fairness.

Benchmark box-plot: Weighted Sample vs EEVDF vs FIFO scheduler (compilation time)

Concurrency testing with custom schedulers¶

Custom schedulers can also be used to make concurrency bugs more reproducible. By controlling task interleaving deterministically, you can force race conditions that would otherwise be probabilistic. See the p99conf 2025 talk:

Blog post: Part 19 — Concurrency Testing Using Custom Linux Schedulers
Talk: Concurrency Testing Using Custom Linux Schedulers — p99conf 2025

Next: Userspace Scheduler
